An uninterruptible power supply (UPS) system that is properly sized guarantees your vital equipment will always have power protection. Companies that neglect appropriate size run the danger of expensive equipment damage, data loss, or downtime. Protecting a data center, office, or industrial setting requires UPS size that takes into account future-proofing as well as present requirements. This tutorial explains the factors to take into account, how to determine the right size, and typical errors to avoid. Knowing these fundamentals enables company owners, IT specialists, and facilities managers to make an investment in a dependable UPS power system that fulfills their performance requirements while being reasonably priced.
What Factors Should You Consider When Sizing a UPS?
Total Load Requirements and Runtime Needs
Determine the total watts needed by first listing every piece of equipment that the UPS will support. Add all necessary peripherals, servers, and networking equipment. To get the baseline load, add their combined wattages. Take into account the intended runtime during outages; longer operations may demand bigger batteries, while shorter runtimes may call for smaller systems. Allowing a buffer—typically 20–25% additional capacity—is a wise move for increased dependability. This guarantees that during unforeseen surges, the UPS power supply won’t be overburdened. In the end, being aware of load and runtime requirements helps in selecting a UPS that keeps power without needless overspending.
Power Factor and Type of Load
The equipment’s power factor indicates how well it utilizes electricity. The capacity of the majority of UPS devices is listed in both VA and watts. A 1000VA UPS that has a power factor of 0.8 can handle 800W. Undersized systems result from ignoring this. Additionally, each load has particular requirements, such as sensitive electronics or inductive motors. A UPS with sophisticated regulation capabilities is necessary because some devices result in large inrush currents or frequent switching. The UPS output should always be in line with the kind and characteristics of the equipment you are connecting. Premature equipment failure or poor power transmission may arise from a mismatch between the UPS design and the kind of load.
Future Scalability and Redundancy Options

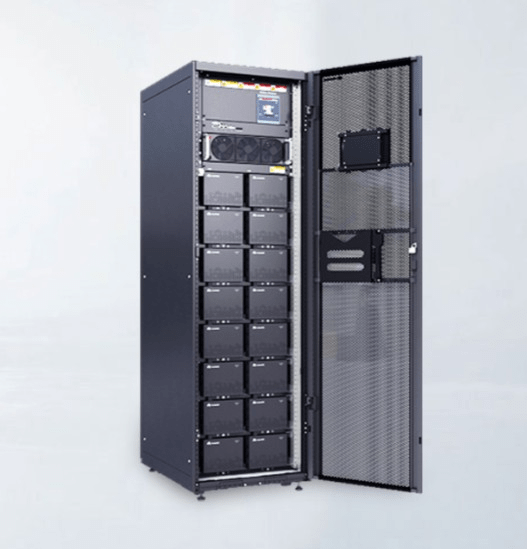

Businesses develop, and so do electricity requirements. When sizing a UPS, consider potential growth. Will you install or update servers during the next year or two? If so, consider a modular backup power solution that allows you to expand without requiring complete replacement. Redundancy is another important consideration—N+1 designs provide backup modules in case one fails, lowering the likelihood of downtime. Incorporating scalability and redundancy into your strategy enhances long-term efficiency and prevents expensive retrofits. A backup power supply should expand with you rather than constrain it. Strategic forethought now yields less hassles later.
How to Calculate the Correct UPS Size
Step-by-Step Load Calculation Method
List every device that has to be connected to the UPS first. Note down their ratings for wattage or amperage. Multiplying amps by voltage (often 120 or 230V) yields watts. Add together all of the watts and divide by the power factor (usually 0.8) to convert to VA. Give yourself a 20–25% cushion to be safe. Your minimum UPS capacity is indicated by this VA number. Next, figure out how long the UPS can sustain that load by using battery size charts to determine the runtime requirements. This plan guarantees that your backup power source won’t go out during periods of heavy demand or critical outage.
Common Sizing Tools and Manufacturer Calculators
Several manufacturers provide online UPS sizing calculators specific to their product ranges. These tools make the procedure easier: you choose the equipment type, enter the load numbers, and select your chosen runtime. Popular brands include APC, Eaton, and Vertiv. These calculators also propose UPS models depending on your specifications, such as scalability and redundancy. For mission-critical applications, it is usually preferable to personally check the findings or consult with an expert. Using tools with real load audits assures that a backup power system satisfies technical specifications and future expectations. It’s a wise move to reduce guessing and expedite decision-making.
Real-World Example Sizing Scenario
Assume a modest workplace has five PCs (300W each), two printers (150W each), a network switch (50W), and a router (30W). Total wattage: 1,580W. With a power factor of 0.8, the VA needed is 1,975 VA. Adding a 25% buffer yields around 2,470VA. You’d use a 3kVA UPS to handle this easily. For a 30-minute runtime, refer to the battery chart for that load. This example demonstrates how simple it is to grow the UPS power system once you understand the procedure. When deciding on a size, always round up and account for future development.
Common UPS Sizing Mistakes to Avoid
Underestimating Power Spikes or Start-up Load
Many gadgets require substantially more power when they are first turned on than when they are in use. Ignoring this surge load causes undersizing. Laser printers, motors, and compressors are frequent causes. When these power-hungry components turn on, they might trigger an inadequate UPS, resulting in outages or harming linked equipment. Always evaluate the inrush current and choose a backup power supply that can manage peak loads, not simply normal use. Make enough space for safety, particularly if your load contains many gadgets that may start simultaneously. Anticipating power surges ensures that your UPS works under pressure, not simply under ideal circumstances.
Ignoring Battery Backup Time Requirements
A typical mistake is choosing a UPS that can handle the load but only has minutes of runtime. This may be acceptable for fast shutdowns but not for essential activities needing sustained uptime. The backup time is determined by the size and efficiency of the battery. If your application requires 15, 30, or even 60 minutes of operation, the battery capacity must be adjusted correspondingly. Manufacturers provide runtime charts, or you may utilize battery calculators. By skipping this step, you risk having an underperforming UPS power system when it counts the most. Always align runtime requirements with business continuity objectives—not all power outages are quick.
Choosing the Wrong UPS Topology
UPS systems have three major topologies: standby, line-interactive, and online double-conversion. Each serves a distinct purpose. Using a simple standby UPS for mission-critical servers, for example, is an expensive error. Online systems provide constant electricity and improve protection against fluctuations. Line-interactive units strike a balance for mid-range requirements. Before making a decision, consider your surroundings as well as the sensitivity of any linked equipment. The incorrect topology decreases security and performance. Ensure the ups power system topology aligns with your application—whether that’s for home, office, or industrial use. Investing in the right type avoids unnecessary replacements and protects uptime.
Conclusion
Selecting the appropriate UPS size is critical for power dependability, equipment safety, and business continuity. You must consider overall load, power factor, runtime, and potential expansion. Use mathematical techniques and tools to ensure accuracy, and learn from frequent errors such as neglecting inrush loads or backup times. The ideal backup power system does more than simply meet your present requirements; it grows with your operations and can endure real-world situations. When carefully constructed, a properly sized UPS becomes a quiet protector that is always ready. Whether for a data center or a tiny office, proper size ensures that everything continues to function even when the power fails.
